15″ Cast Aluminum Subwoofer Basket Frame with 8″ Spider Spacer

15″ Cast Aluminum Subwoofer Basket Frame with 8″ Spider Spacer

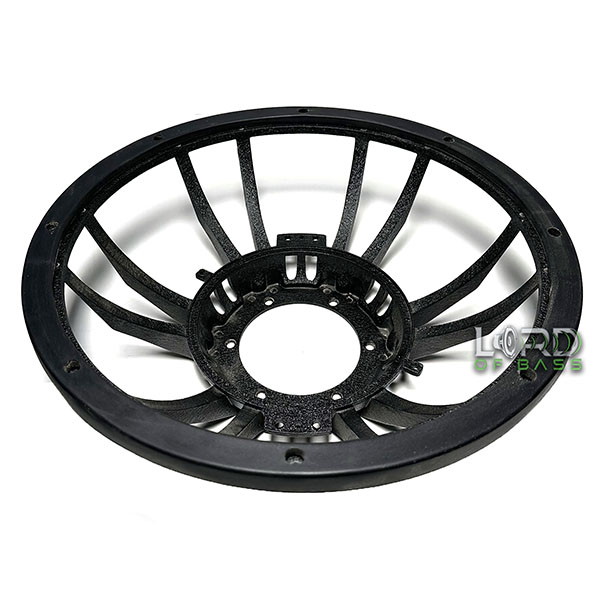

This 15″ cast aluminum subwoofer basket features a durable black wrinkle-finish powder coat and a 7.5″ spider landing. Additionally, an 8″ spider spacer is included to provide a larger spider mounting surface.

7.5″ to 8″ Spider Landing

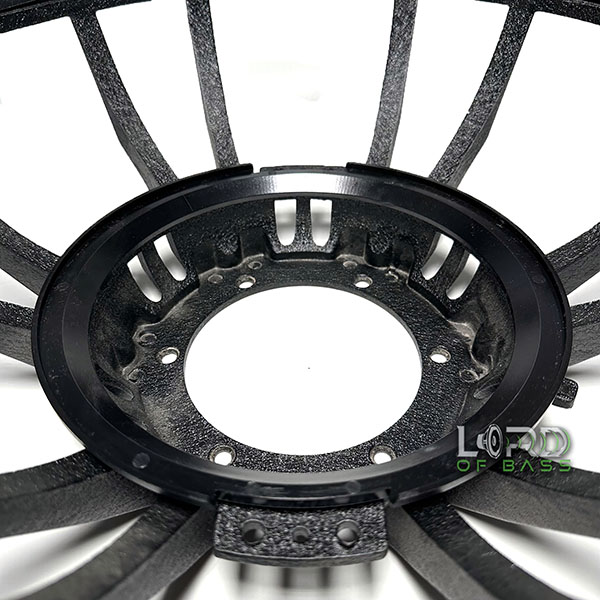

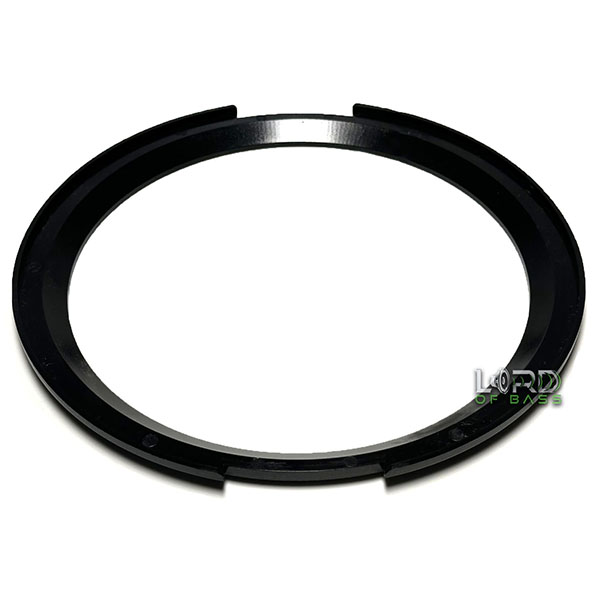

The frame has a 7.5″ spider landing, which limits the spider options available for a 15″ frame. However, the included spacer mounts to the existing spider landing and converts it to an 8″ spider mounting surface.

The 15″ subwoofer basket frame uses a 5″ (127 mm) 6-bolt motor mounting pattern and includes the gasket shown in the photos.

Specifications

• Nominal Size: 15″
• Material: Cast Aluminum
• Finish: Black Wrinkle-Finish Powder Coat
• Mounting Depth: 4.7″ (119.38 mm)
• Spider Landing: 7.5″ (190.5 mm)
• Included Spider Spacer: 8″ (203.2 mm)
• Spacer Function: Converts 7.5″ spider landing to 8″
• Motor Bolt Pattern: 5″ (127 mm), 6-Bolt
• Gasket: Rubber Wrap-Around Gasket Included

Package Includes

• (1) 15″ Cast Aluminum Subwoofer Basket Frame
• (1) 8″ Spider Spacer
• (1) Rubber Wrap-Around Gasket

Please verify the motor bolt pattern and required dimensions before ordering, as 15″ subwoofer baskets are not universally interchangeable.
