183oz Subwoofer Motor LV25
$84.00
Motor can only ship out via USPS Flat Rate.
Out of stock
Email me when stock's back

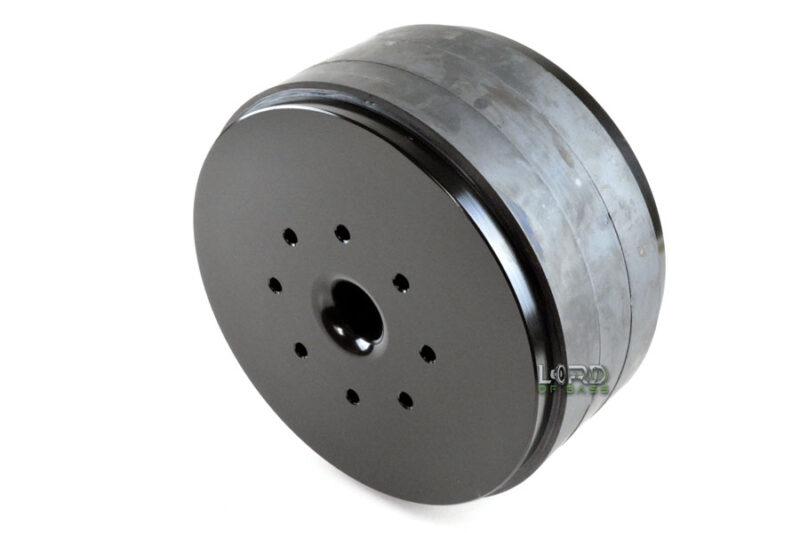

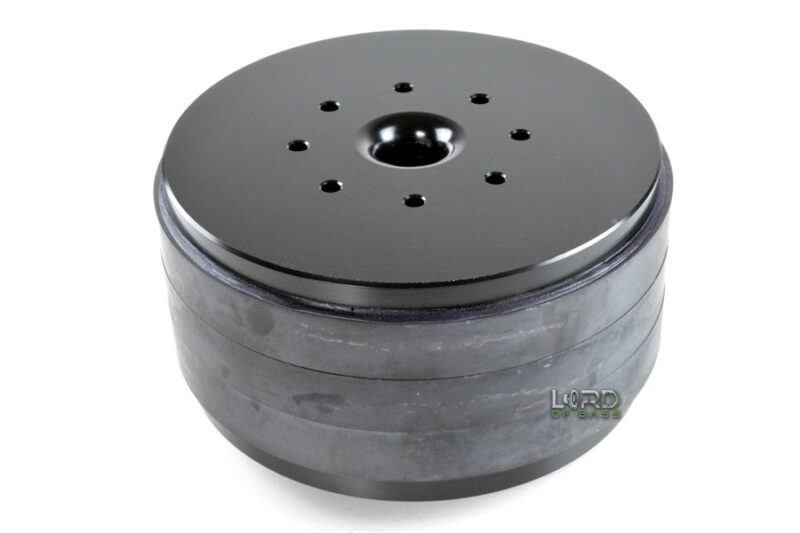

183oz Subwoofer Motor LV25
- Top Plate Height: 0.5″ (12.7mm)
- Top Plate Inner Diameter: 2.8″ (71.3mm)
- Pole Outer Diameter: 2.445″ (62.1mm)
- Ferrite Outer Diameter: 6.693” (170mm)
- Ferrite Height: .787” (20mm)
- Ferrite Count: triple stack
- Gap depth: 2.86″ (72.7mm)
- Bolt Pattern: 5” (127mm) x6 & 4.33″ (110mm) x6
- Bolt Thread: M6
- Motor Weight: 22lbs
| Weight | 376 oz |
|---|---|
| Dimensions | 7 × 7 × 6 in |
