Description

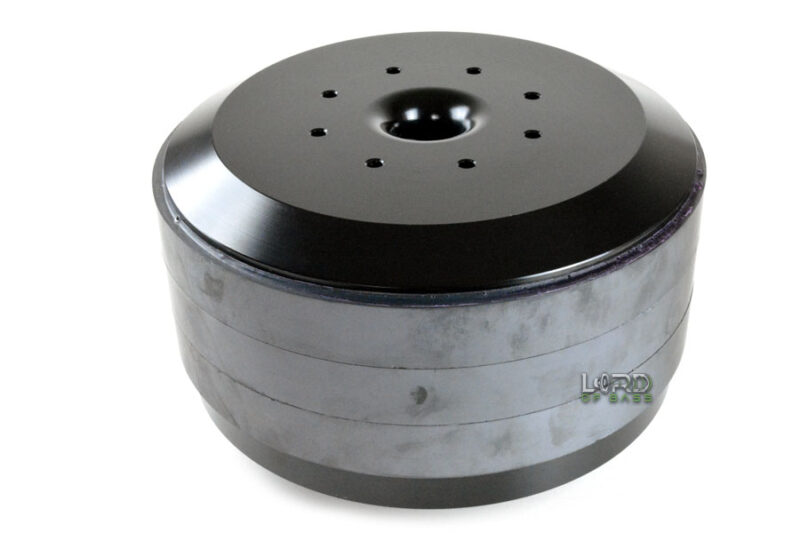

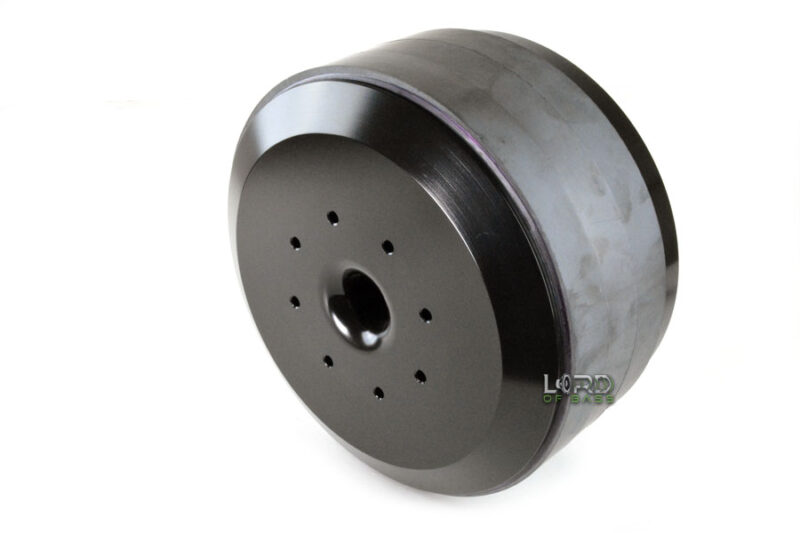

400 oz Subwoofer Motor 3″ Voice Coil
- Top Plate Height: .826″ (21mm)
- Top Plate Inner Diameter: 3.37″ (85.6mm)
- Pole Outer Diameter: 2.952″ (75mm)
- Ferrite Outer Diameter: 8.66” (220mm)
- Ferrite Height: 1” (25mm)
- Ferrite Count: triple stack
- Gap depth: 3.78″ (96mm)
- Bolt Pattern: 5” (127mm) x 6 & 5.315″ (135mm) X 6
- Bolt Thread: M6
- Motor Weight: 48lbs
Additional information
| Weight | 800 oz |
|---|---|
| Dimensions | 13 × 13 × 8 in |
Reviews 2
Brandin Tatro –
Bad ass motors! And they take the big 8 layer coils.
Daniel (verified owner) –
probably the biggest motor you will find for a 3″ coil.
built a massive 18″ sub with this and put it in a huge ported box on a DC audio 5k… it was fun.
