Subwoofer Spider Spacer Ring – 7″ to 8″ Spider Landing Adapter

Subwoofer Spider Spacer Ring – 7″ to 8″ Spider Landing Adapter

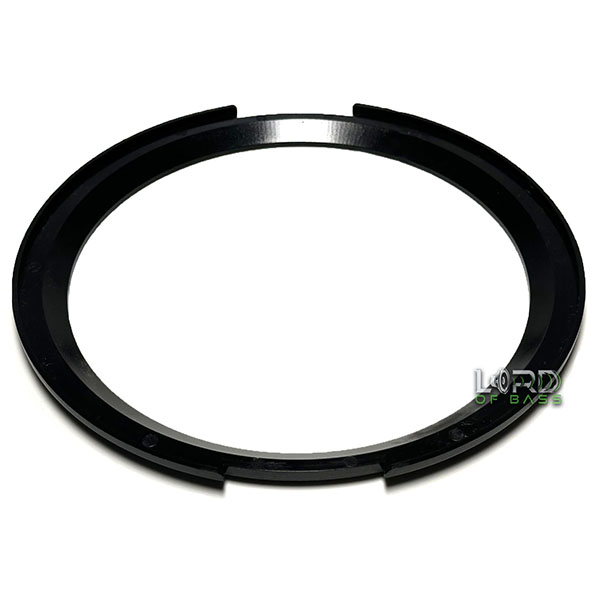

The subwoofer spider spacer ring converts a 7″ spider landing for use with an 8″ spider. The spacer mounts to the existing spider landing and creates the larger mounting surface needed for an 8″ spider or spider pack.

7″ to 8″ Spider Landing Adapter

The spacer ring sits between the subwoofer frame and spider assembly, providing the mounting surface required to install an 8″ spider on compatible frames with a 7″ spider landing.

Using a larger 8″ spider provides more suspension area for high-excursion subwoofer designs, making the spacer a great option for custom builds and recones where additional excursion capability is needed.

Subwoofer Building Applications

Spider landing size is an important consideration when selecting suspension components. The spider requires the proper mounting surface for positioning and bonding to the frame.

The 7″ to 8″ spider spacer ring provides that additional mounting area without requiring modification of the original spider landing. This gives builders the option of using an 8″ spider when the original basket is equipped with a 7″ landing.

Specifications

• Spider Landing OD: 197.56 mm (7.778″)
• Spacer Height: 8.9 mm (0.350″)
• Bottom Mounting Lip OD: 185.5 mm (7.303″)
• Original Spider Landing: 7″
• Spider Size: 8″
• Conversion: 7″ to 8″
• Quantity: 1 ABS Spacer Ring  (Frame Not Included)
