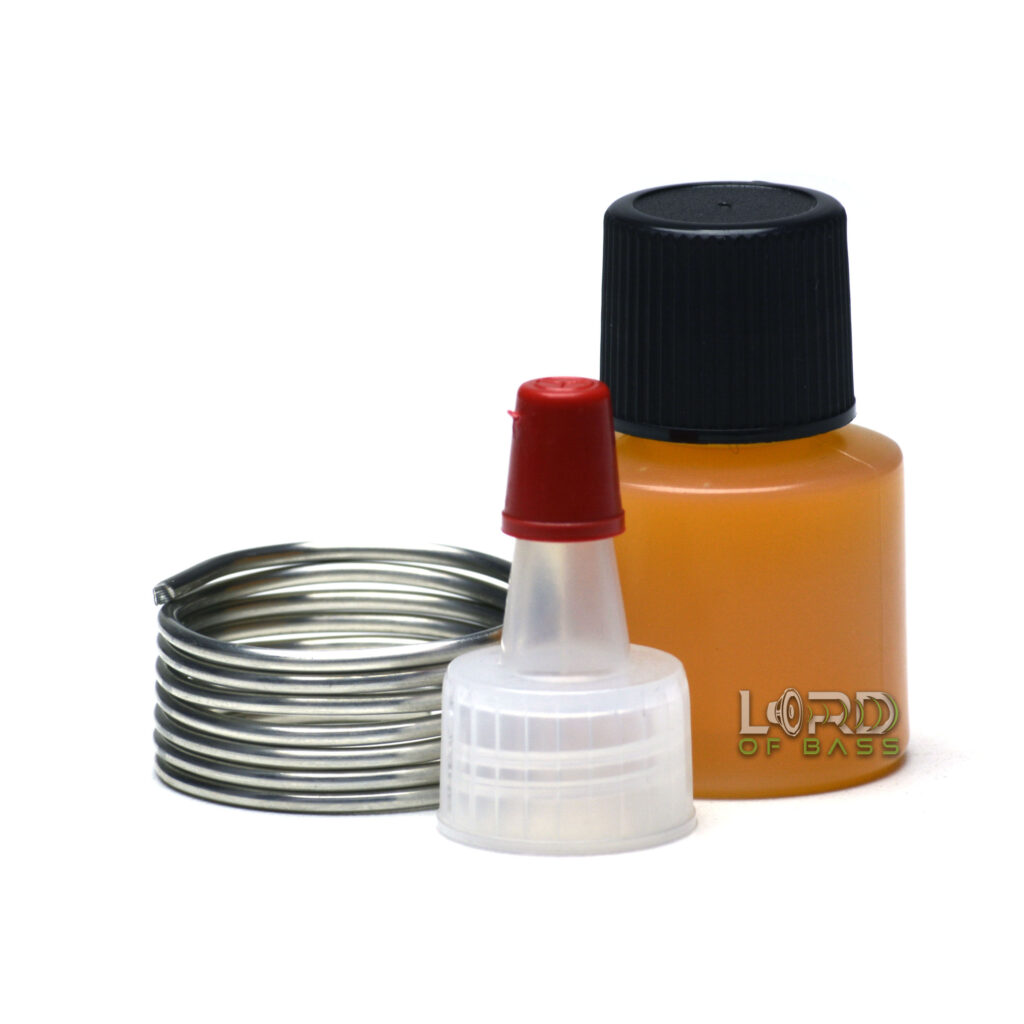

                      Ultra Gold Flux Soldering Kit

                      Ultra Gold Flux Soldering Kit

                      Rated 5.00 out of 5 based on 1 customer rating
                      (1 customer review)

                      $8.25 – $25.50

                      • Liquid Low temperature 350-550°F / 177-288°C flux for Aluminum
                      • Solder Aluminum to Aluminum, Copper, and Stainless Steel
                      • Effective fluxing action occurs at 350-550°F (177-288°C)
                      Clear
                      SKU: N/A Category: Miscellaneous
                      Description

                      Ultra Gold Flux Soldering  Kit

                      Ultra Gold Flux has been designed specifically for KA09 low temperature soldering of Aluminum to Aluminum, Copper, and Stainless Steel. This flux is golden colored, chloride-free, and organic based containing 56-60% active ingredients consisting of amines and complex inorganic fluorides. Effective fluxing action occurs at 350-550°F (177-288°C). Ultra Gold Flux will char at temperatures above 550°F (288°C). It is impossible to solder leads to a aluminum voice coil without the proper solder and flux. Our Flux and solder is specifically made to work together to get the job done right. We do not recommend using our flux without our solder other wise it will not work properly Ultra Gold Flux has been designed specifically for soldering Aluminum to Aluminum, Copper, and Stainless Steel. DO NOT OVERHEAT – flux will char at temperatures above 550°F. The resulting solder joint provides a low electrical resistance contact surface. Ultra Gold Flux flows well and penetrates tight joints and stranded wire very well. It is a golden colored, Chloride-Free, organic-based flux containing 56-60% active ingredients. It is a liquid consisting of amines and complex inorganic fluorides.

                      Applications:

                      • Aluminum to Aluminum or Aluminum to Copper wire pigtail splices
                      • Aluminum to Copper, Aluminum to Brass or plated terminals
                      • Hot dip coating of Aluminum cable connectors to provide a low resistance contact surface
                      • Recommended soldering alloy KA09 for soft soldering
                      • Where it is desirable to attain flow into tight capillary joints
                      • Residue is electrically conductive and slightly corrosive. We recommend that user remove any residue with hot water or alcohol and a clean rag.

                      Properties:

                      The following chart represents the physical properties of Ultra Gold Flux. Many factors, such as materials, temperature, and method of application determine the most effective flux. We recommend testing appropriate fluxes in your specific application to ensure suitability.

                      Technical Data
                      Active Temperature Range:

                      350-550°F (177-288°C)

                      Viscosity:

                      1050 cps #3 spindle, 20 rpm

                      Appearance:

                      Clear gold-colored viscous syrup with ammonia odor

                      Solubility:

                      Soluble in water

                      pH:

                      Slightly Alkaline

                      Corrosion Resistance:

                      Fair

                      Boiling Point:

                      273°F (134°C)

                      Flash Point:

                      230°F (110°C)

                      Shelf Life:

                      2 years unopened at ambient temp

                      Additional information
                      Weight N/A
                      Dimensions N/A
                      Kit Size

                      0.25oz, 0.5oz, 1oz
