May 11, 202450ml Empty 1:1 ratio 2-Part Cartridge With Sealing Cap & Pistons
$1.25
- Empty 50ml Dual-Barrel cartridge for 1:1 mix ratio 2-part adhesives
- Includes cartridges, sealing pistons & caps
- Perfect for prototyping and on-the-job adhesive preparation
- Cartridge is the standard ‘square-back’ type A cartridge
- Cartridge fits our PXDG50.1112 2 part dispensing gun
In stock

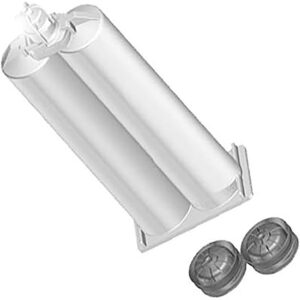

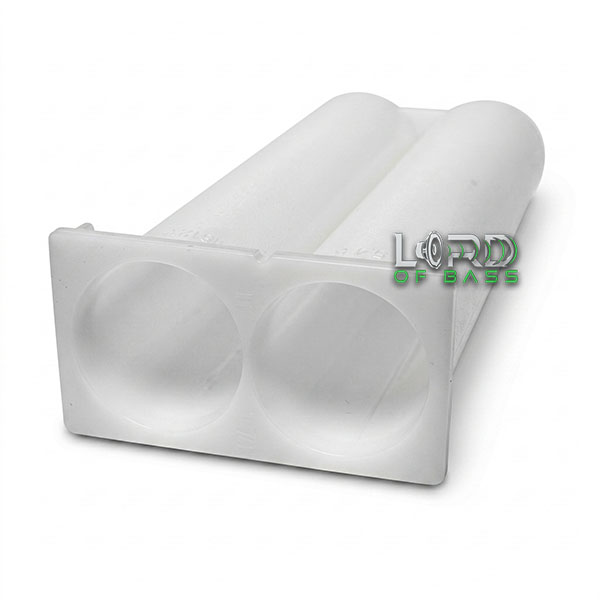

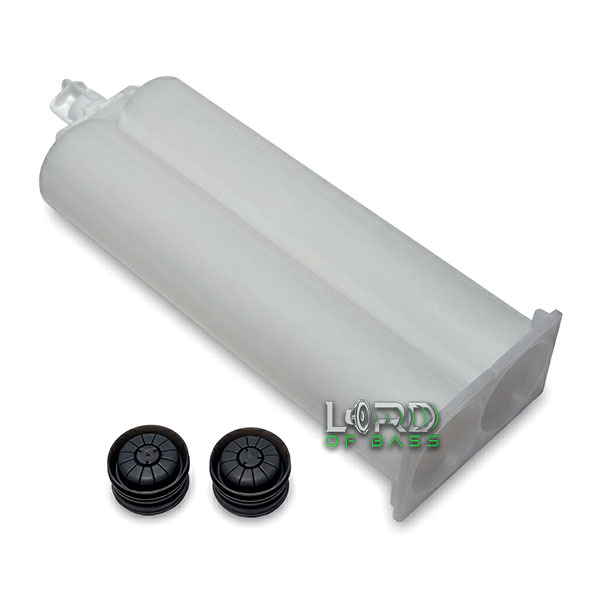

50ml Empty 1:1 ratio 2-Part Cartridge With Sealing Cap & Pistons
Use these cartridges for filling and dispensing 2-part adhesives, epoxies, silicones, urethanes, and other 2-part compounds. These cartridges store and apply adhesives needing a 1:1 mix ratio, ensuring precise metering and mixing. Each cartridge includes matching pistons and a resealable tip or cap, ready for filling, storing, and dispensing.
These 2-Part cartridges are industrial-grade and silicone-free, designed using the “A-System” or “Square-Back” fit. The design features an easy-to-reclose cap for convenience.
The 2-Part design keeps the adhesive parts separate until you attach a mixing nozzle. The parts are pushed into the mixing nozzle, starting the bonding or curing process. A key feature is the easy-to-install pin-style sealing pistons, which allow air to escape as you insert the pistons and seal off with the push of a blue pin.
Empty Cartridge: The cartridge holds two adhesive components, usually resin and hardener, in equal 25ml compartments. These compartments keep the components separate until dispensed and mixed.

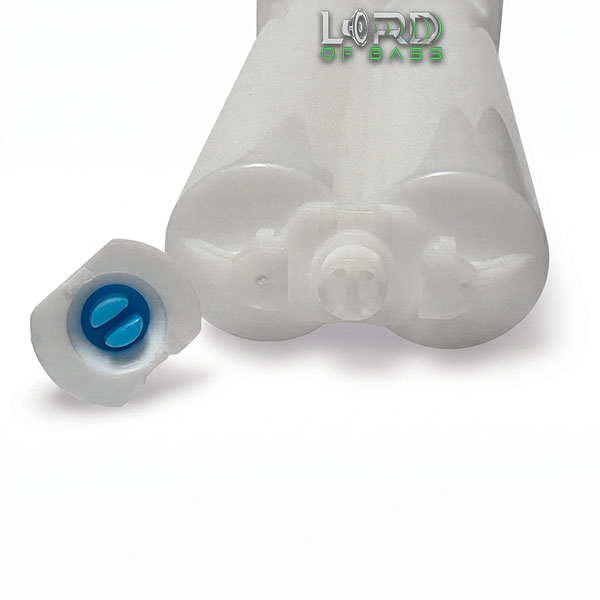

Sealing Cap: The sealing cap prevents leakage and keeps the adhesive components securely contained until ready for use. It ensures the adhesive remains fresh and uncontaminated.
Pistons: Insert pistons into each compartment to push the adhesive components out when applying pressure. The pistons create a tight seal against the cartridge walls, preventing cross-contamination between the components.

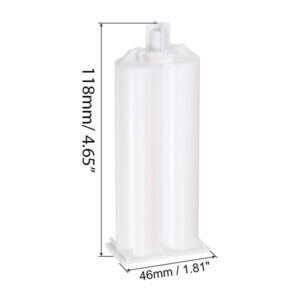

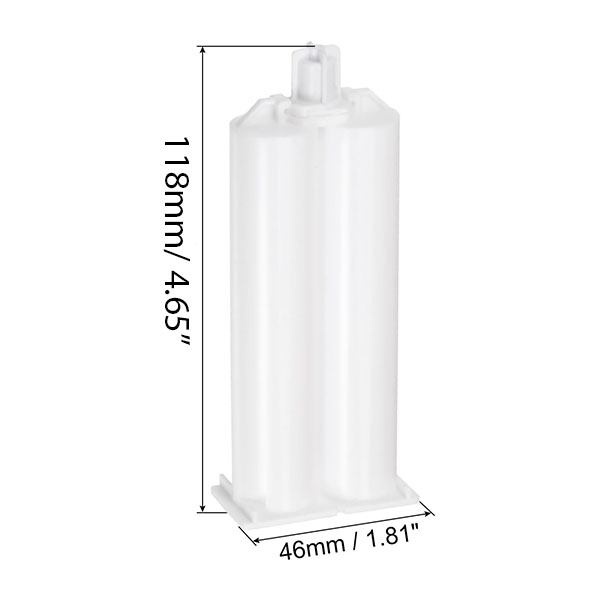

Total Cartridge Length (bottom to cap tip | 4.63″ |
Barrel length | 3.81″ |
Total cartridge width | 1.88″ |
Large Barrel Inner Diameter | 0.87″ |
Small Barrel Inner Diameter | 0.62″ |
Mixer Style | Bayonet 50ml, Helix or Quadro/Square |
Total Cartridge Volume (both barrels combined) | 50ml or 1.7oz |
Weight | 2 oz |
---|---|
Dimensions | 6 × 4 × 2 in |
